Warm Tiles Relay Kits for Electric Floor Warming Systems
The Warm Tiles Relay Kit allows you to connect two or more floor warming
kits in the same room. First you would connect the first line voltage
feed to the thermostat. The load connection pigtails from the thermostat
are run to the coil of the relay, which is housed in a separate
electrical box. A second line voltage feed is connected to the input
terminals of the relay and the heating cable cold leads are connected to
the output terminals. When the thermostat calls for heat, the coil is
engaged, connecting the input and output terminals, therefore allowing
power to flow to the cables. Remember to follow the detailed
instructions provided in each Relay.

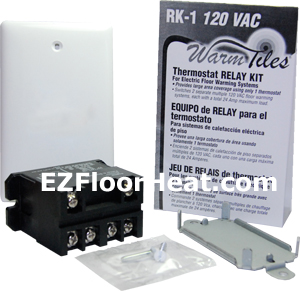

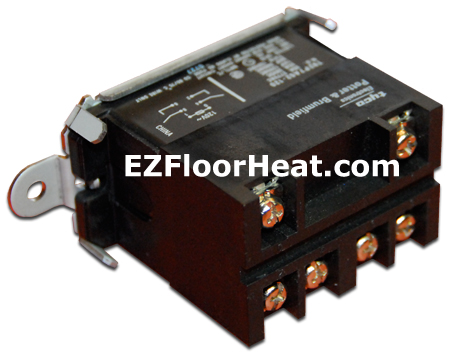

RK-1 120 VAC Thermostat RELAY KIT
Switches 2 separate multiple 120 VAC floor warming systems, each with a total 24 Amp maximum load. RK-2 240 VAC Thermostat RELAY KIT
Switches multiple 240 VAC floor warming systems with a total 24 Amp maximum load.
|
