The Warm Tiles® Cable system provides unlimited design configurations for even the most difficult shaped room. The Warm Tiles® cable allows you to install full floor warming coverage by lacing the cable on the floor wherever you require a heated area. Two different spacing options enable these extremely flexible cables to be installed virtually anywhere. Simply snap the cable into the strapping included in your Cable Installation Kit and follow the Cable installation instructions.

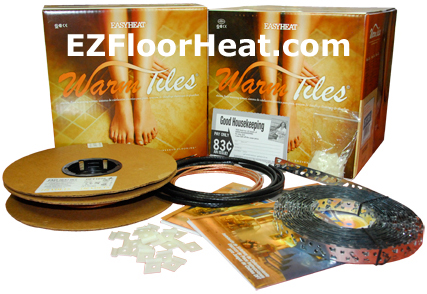

All Cable Kits include: A Warm Tiles® Floor Warming Cable, Floor Strapping, Floor Clips, Installation Instructions, User's Guide, and Warranty Information.
|
Quick Add Charts for Cable Kits
| Warm Tiles® 120V Cable Kits |
| Model No. |
Standard SQFT(m2) |
Alternating SQFT(m2) |
Amps* |
| DFT 1011 |
9-13 (0.84-1.21) |
7-9 (0.65-0.84) |
1.1 |
| DFT 1016 |
14-18 (1.30-1.67) |
10-13 (0.93-1.21) |
1.6 |
| DFT 1022 |
19-26 (1.77-2.42)
|
14-19 (1.30-1.77) |
2.2 |
| DFT 1030 |
27-34 (2.51-3.16) |
20-26 (1.86-2.42) |
3.0 |
| DFT 1039 |
35-42 (3.25-3.90)
|
27-33 (2.51-3.07) |
4.0 |
| DFT 1048 |
43-54 (3.99-5.02) |
34-39 (3.16-3.62) |
5.1 |
| DFT 1059 |
55-65 (5.11-6.04) |
40-48 (3.72-4.46) |
6.4 |
DFT 1069
|
66-72 (6.13-6.69) |
49-54 (4.55-5.02) |
7.5 |
| DFT 1079 |
73-82 (6.78-7.62) |
55-62 (5.11-5.76) |
8.5 |
DFT 1088
|
83-92 (7.71-8.55) |
63-69 (5.85-6.41) |
8.8
|
DFT 1098
|
93-102 (8.64-9.48) |
70-76 (6.50-7.06) |
9.6
|
DFT 1108
| 103-113 (9.57-10.50)
| 77-85 (7.15-7.90)
| 10.7
|
Warm Tiles® 240V Cable Kits
|
| Model No. |
Standard SQFT(m2) |
Alternating SQFT(m2) |
Amps* |
| DFT 2021 |
18-25 (1.67-2.32) |
13-19 (1.21-1.77) |
1.1 |
| DFT 2031 |
26-35 (2.42-3.25) |
20-27 (1.86-2.51) |
1.6 |
| DFT 2053 |
48-55 (4.46-5.11) |
35-44 (3.25-4.09) |
2.6 |
| DFT 2065 |
60-70 (5.57-6.50) |
45-54 (4.18-5.02) |
3.3 |
| DFT 2078 |
71-83 (6.60-7.71) |
55-63 (5.11-5.85) |
4.0 |
| DFT 2095 |
90-100 (8.36-9.29) |
64-75 (5.95-6.97) |
5.1 |
| DFT 2118 |
110-130 (10.22-12.08) |
84-94 (7.80-8.73) |
6.3 |
| DFT 2137 |
131-145 (12.17-13.47) |
95-108 (8.83-10.03) |
7.5 |
| DFT 2157 |
146-165 (13.56-15.33) |
109-125 (10.13-11.61) |
8.4 |
| DFT 2175 |
166-184 (15.42-17.09) |
126-138 (11.71-12.82) |
8.8 |
| DFT 2195 |
185-204 (17.19-18.95) |
139-153 (12.91-14.21) |
9.6 |
| DFT 2215 |
205-225 (19.5-20.90) |
154-169 (14.31-15.70) |
10.7 |
* CAUTION: Kit combinations that exceed 10 Amps should be connected by a
qualified electrician.
|
| |
|
|
