Introducing the latest innovation in floor warming technology...

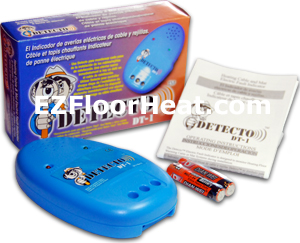

Detecto Electric Fault Indicator for Warm Tiles
Detecto Electric Fault Indicator is designed to monitor EASYHEAT Warm
Tiles Floor Warming Cable and Mat kits during installation. Detecto
will immediately sound an alarm if there is damage to the heating
cable. Monitors up to three floor warming kits at once. Simply connect to the cold lead.

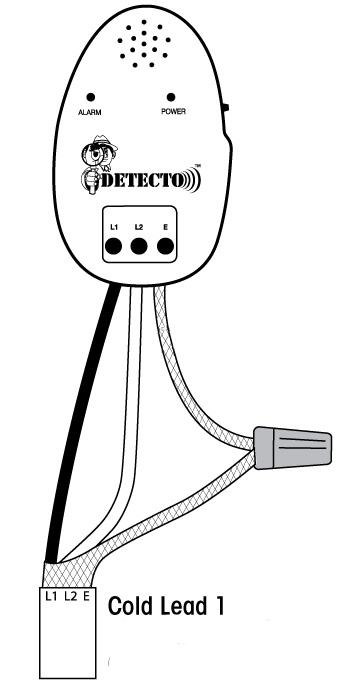

approximately 2” (5 cm) of the black outer cold lead jacket. Separate
the ground braid strands from the leads and twist the copper braid
strands together into a wire. Strip approximately 1/4” (64 mm) of
insulation from the two lead wires. Insert the black lead into the L1
terminal. Next insert the remaining (white 120 volt or red 240 volt)
lead into the L2 terminal. Insert the twisted ground braid wire into
the E terminal. Tighten the terminal screws until the wires are
