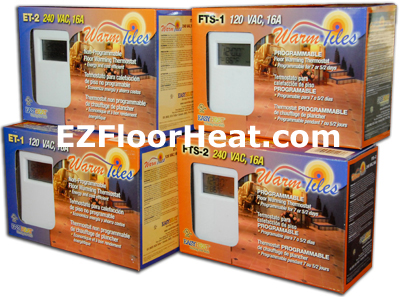

Thermostat Kits
 Easy Heat Warm Tiles® Thermostat Kits, and Honeywell Aube Thermostat Kits
Easy Heat Warm Tiles® Thermostats provide consistent comfort and control. You will appreciate the option to set the timer so that the floor is warm when you need it most. Imagine waking up to a warm bathroom at 6:00 in the morning, or cooking dinner with a heated kitchen floor beneath your feet. Warm Tiles® Thermostats provide you with this incredible flexibility, while saving you time and money at the same time.
Warm Tiles® underfloor heating thermostats feature state-of-the-art temperature control. Using a floor sensor that is embedded in the mortar just below your finished floor, the sensor monitors the actual floor temperature to provide you with accurate comfort levels. We offer both programmable and non-programmable thermostat models below. Warm Tiles® FG Non-programmable model thermostat offers a simple on and off selector switch along with a temperature adjustment. For even greater flexibility, the Warm Tiles FGS Programmable model thermostat is a dual
voltage (120/240 Vac) control that features 7-day or 5/2-day programming options, as well as a simple on and off selector switch for manual operation. With the FGS Programmable thermostat, you can program the electric radiant floor heating system to heat the floors in the early morning hours and again in the evening. Both models have a
large blue backlit LCD display for easy viewing. The FGS model replaces the older programmable FTS and GTS model thermostats, while the FG model replaces the older non-programmable ET and GT model thermostats.
As an option to the Warm Tiles® brand of thermostats, Honeywell Aube thermostats offer models that read both floor and ambient room temperature for three choices of control (Ambient, Floor, or Ambient with Floor temperature limit). With a contemporary design and large backlit displays, the TH-114 non-programmable models offer GFCI protection, ON/Standby control to enable shutdown at the end of a heating season, and come backed by a 3 year manufacture warranty. The TH115 programmable model offers the same features at the TH114 model, but also offers advanced features of control including an early start function, temporary override capabilities without changing programming, and full 7-Day programmability.
And, for the ultimate in remote control technology, check out the Warm Tiles™ES and ESW Interactive Touch Thermostats. With WiFi capability, the ESW allows controllable from your web browser, smartphone or tablet. This unit provides flexibility never before seen in a floor warming thermostat. With features to long to list, check out the information available below to learn more.
Whether you plan to install it in the kitchen, bathroom, or any other room in the house, an electric radiant floor system is an efficient way to heat the home. Add a programmable thermostat to your heated tile floor system and use up to 50% less energy. Unlike hot water or hydronic floor heating systems that require a boiler to be heating water continuously throughout the day, Warm Tiles® electric radiant floor systems can be energized during specific hours of the day with a programmable thermostat, and shut down when not needed. There is really no comparison between Warm Tiles® electric floor systems and hydronic floor heating systems.

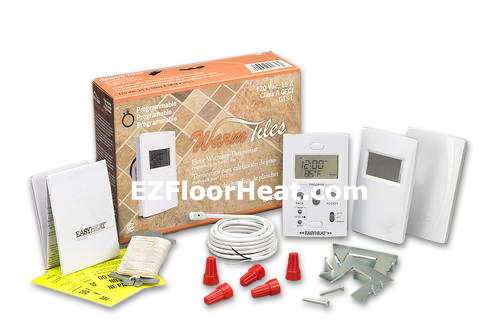

Warm Tiles™ F-Series Digital Thermostat Kits
Providing consistent comfort and control for many years, the Warm Tiles™ FGS & FG model thermostats offer state-of-the-art temperature control, and easy programming functionality.
| |
Warm Tiles™ Thermostat Kits
| | Model No. | Voltage | Programmable/
Non-Programmable | Maximum
Amperage | | FGS | Dual Voltage
| Programmable | 15 Amps
| | FG | Dual Voltage
|
Non-programmable | 15 Amps
|
Quick Document Links
|
|
| FGS Series Thermostat
Operation & Installation
Instructions | FG Series Thermostat
Operation & Installation
Instructions |
|
Warm Tiles™ Color Touch Thermostat Kits
| | Model No. | Voltage | Programmable/
Non-Programmable | Maximum
Amperage | ESW WiFi Color Touch
| Dual
Voltage
| NEW! Programmable | 15 Amps
| ES Color Touch
| Dual Voltage
| NEW!
Programmable | 15 Amps
|
|
Honeywell/Aube Thermostat Kits
| | Model No. | Voltage | Programmable/
Non-Programmable | Maximum
Amperage | | TH115-AF-GA | Dual
Voltage
| Programmable | 15 Amps
|
Quick Document Links
|
|
| TH115 Series Thermostat
Operation & Installation
Instructions
|
|
| ColorTouch Thermostat Kit
With a full set of advanced features, the ES & ESW WiFi Color Touch thermostats can keep you in control of your floor warming with the latest in display technology and control.
|
Honeywell Aube Thermostat Kits
With their contemporary design, large backlit display, and ability to read ambient room and floor temperatures, these thermostats have advanced temperature control.
|
|
| |
|
|
|
|
