QuARTz by ACO Linear Drains
The Shower Drainage Option Designed to Impress
The word ‘ART’ in the QuARTz product name appropriately reflects a
strong visual change from traditional shower drains, offering
contemporary solutions for high end shower design.The latest trend in bath design and remodeling is to create large
open showers that provide a luxurious experience. This means increasing
the shower footprint for an open, airy and spa-like ambience, and
removing barriers such as shower doors for walk-in or step-in
convenience. This ‘wetroom’ trend has already taken hold in Europe and
is successfully moving to the North America.
Linear Drain Grate & Channel Sets
• Use Plain Edge for CPE Membrane Installations with Clamp Collar.
• Use Flange Edge for Concrete Installations with Liquid Applied Membrane or Hot Mop Application.
 | Quartz Technical Brochure
|

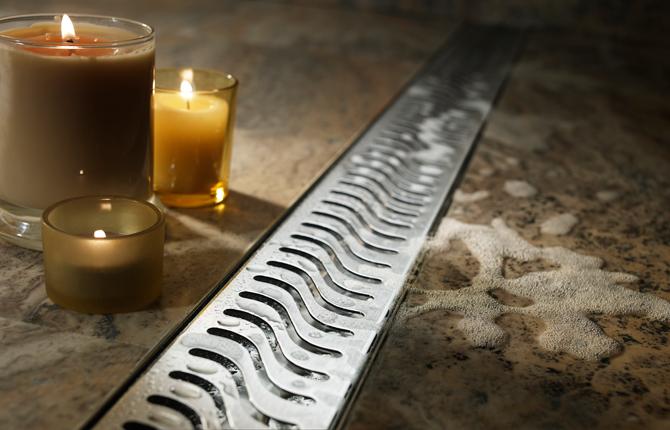

FLAG - Linear Drain Grate with Channel
| Plain Edge
| Flange Edge
| Dimensions
| Finishes
Available
| 28FLAGPLAIN
| 28FLAGFLANGE | 27.55"L x 3.31"W
| Stainless Steel,
Oil-Rubbed Bronze
| 32FLAGPLAIN
| 32FLAGFLANGE | 31.50"L x 3.31"W
| Stainless Steel,
Oil-Rubbed Bronze | 36FLAGPLAIN
| 36FLAGFLANGE | 35.43"L x
3.31"W
| Stainless Steel, Oil-Rubbed
Bronze | 40FLAGPLAIN
| 40FLAGFLANGE | 39.37"L x
3.31"W
| Stainless Steel, Oil-Rubbed
Bronze | 48FLAGPLAIN
| 48FLAGFLANGE | 47.25"L x 3.31"W
| Stainless Steel, Oil-Rubbed
Bronze | 56FLAGPLAIN
| 56FLAGFLANGE | 55.12"L x 3.31"W
| Stainless Steel, Oil-Rubbed
Bronze |

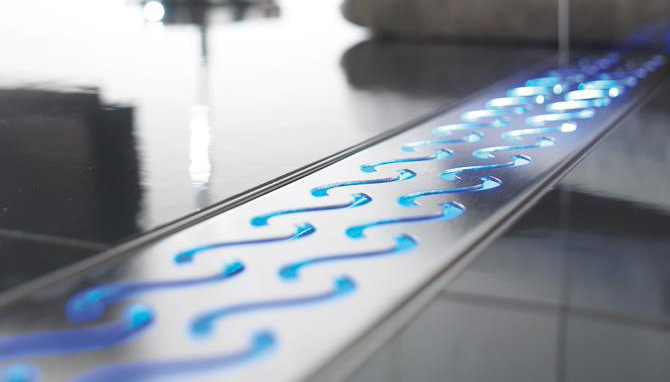

HAWAII - Linear Drain Grate with
Channel
| Plain Edge
| Flange Edge
| Dimensions
| Finishes
Available
| 28HAWAIIPLAIN
| 28HAWAIIFLANGE
| 27.55"L x 3.31"W
| Stainless Steel,
Oil-Rubbed Bronze
| 32HAWAIIPLAIN
| 32HAWAIIFLANGE
| 31.50"L x 3.31"W
| Stainless Steel,
Oil-Rubbed Bronze | 36HAWAIIPLAIN
| 36HAWAIIFLANGE
| 35.43"L x
3.31"W
| Stainless Steel, Oil-Rubbed
Bronze | 40HAWAIIPLAIN
| 40HAWAIIFLANGE
| 39.37"L x
3.31"W
| Stainless Steel, Oil-Rubbed
Bronze | 48HAWAIIPLAIN
| 48HAWAIIFLANGE
| 47.25"L x 3.31"W
| Stainless Steel, Oil-Rubbed
Bronze | 56HAWAIIPLAIN
| 56HAWAIIFLANGE
| 55.12"L x 3.31"W
| Stainless Steel, Oil-Rubbed
Bronze |

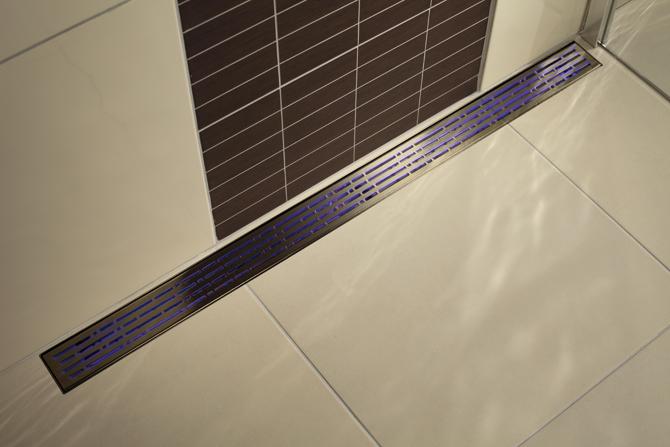

MIX - Linear Drain Grate with
Channel
| Plain Edge
| Flange Edge
| Dimensions
| Finishes
Available
| 28MIXPLAIN
| 28MIXFLANGE
| 27.55"L x 3.31"W
| Stainless Steel,
Oil-Rubbed Bronze
| 32MIXPLAIN
| 32MIXFLANGE | 31.50"L x 3.31"W
| Stainless Steel,
Oil-Rubbed Bronze | 36MIXPLAIN
| 36MIXFLANGE | 35.43"L x
3.31"W
| Stainless Steel, Oil-Rubbed
Bronze | 40MIXPLAIN
| 40MIXFLANGE | 39.37"L x
3.31"W
| Stainless Steel, Oil-Rubbed
Bronze | 48MIXPLAIN
| 48MIXFLANGE | 47.25"L x 3.31"W
| Stainless Steel, Oil-Rubbed
Bronze | 56MIXPLAIN
| 56MIXFLANGE | 55.12"L x 3.31"W
| Stainless Steel, Oil-Rubbed
Bronze |

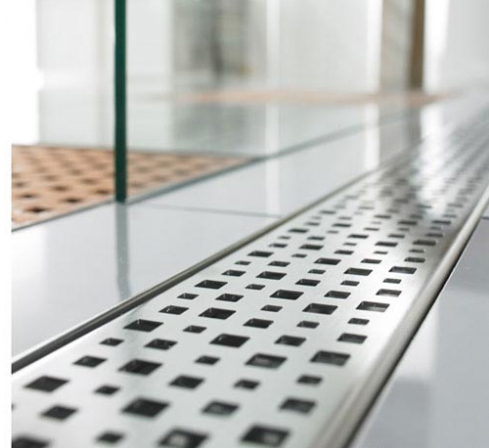

PIXEL - Linear Drain Grate with
Channel
| Plain Edge
| Flange Edge
| Dimensions
| Finishes
Available
| 28PIXELPLAIN
| 28PIXELFLANGE | 27.55"L x 3.31"W
| Stainless Steel,
Oil-Rubbed Bronze
| 32PIXELPLAIN
| 32PIXELFLANGE
| 31.50"L x 3.31"W
| Stainless Steel,
Oil-Rubbed Bronze | 36PIXELPLAIN
| 36PIXELFLANGE | 35.43"L x
3.31"W
| Stainless Steel, Oil-Rubbed
Bronze | 40PIXELPLAIN
| 40PIXELFLANGE | 39.37"L x
3.31"W
| Stainless Steel, Oil-Rubbed
Bronze | 48PIXELPLAIN
| 48PIXELFLANGE | 47.25"L x 3.31"W
| Stainless Steel, Oil-Rubbed
Bronze | 56PIXELPLAIN
| 56PIXELFLANGE | 55.12"L x 3.31"W
| Stainless Steel, Oil-Rubbed
Bronze |

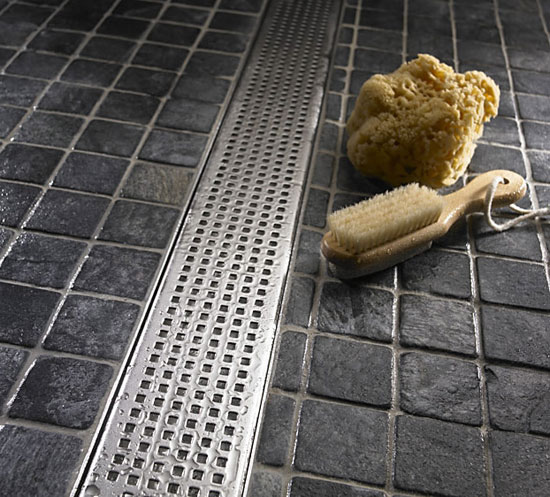

QUADRATO - Linear Drain Grate with
Channel
| Plain Edge
| Flange Edge
| Dimensions
| Finishes
Available
| 28QUADPLAIN
| 28QUADFLANGE | 27.55"L x 3.31"W
| Stainless Steel,
Oil-Rubbed Bronze
| 32QUADPLAIN
| 32QUADFLANGE | 31.50"L x 3.31"W
| Stainless Steel,
Oil-Rubbed Bronze | 36QUADPLAIN
| 36QUADFLANGE | 35.43"L x
3.31"W
| Stainless Steel, Oil-Rubbed
Bronze | 40QUADPLAIN
| 40QUADFLANGE | 39.37"L x
3.31"W
| Stainless Steel, Oil-Rubbed
Bronze | 48QUADPLAIN
| 48QUADFLANGE | 47.25"L x 3.31"W
| Stainless Steel, Oil-Rubbed
Bronze | 56QUADPLAIN
| 56QUADFLANGE
| 55.12"L x 3.31"W
| Stainless Steel, Oil-Rubbed
Bronze |

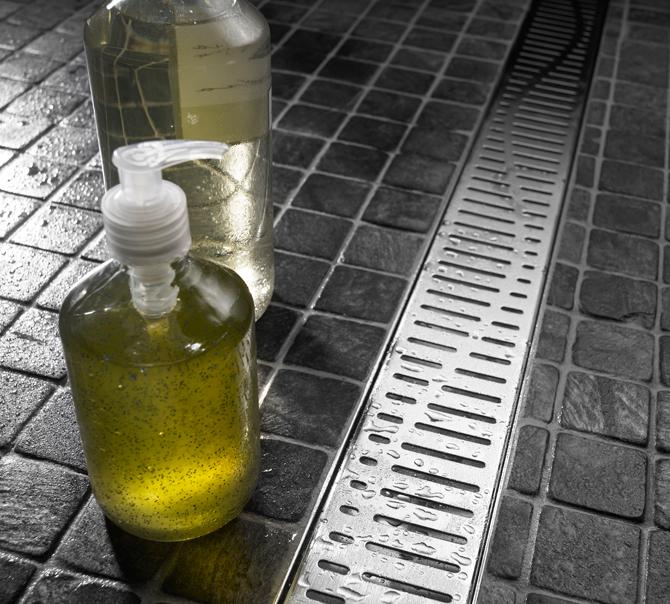

WAVE - Linear Drain Grate with Channel
| Plain Edge
| Flange Edge
| Dimensions
| Finishes
Available
| 28WAVEPLAIN
| 28WAVEFLANGE
| 27.55"L x 3.31"W
| Stainless Steel,
Oil-Rubbed Bronze
| 32WAVEPLAIN
| 32WAVEFLANGE | 31.50"L x 3.31"W
| Stainless Steel,
Oil-Rubbed Bronze | 36WAVEPLAIN
| 36WAVEFLANGE | 35.43"L x
3.31"W
| Stainless Steel, Oil-Rubbed
Bronze | 40WAVEPLAIN
| 40WAVEFLANGE | 39.37"L x
3.31"W
| Stainless Steel, Oil-Rubbed
Bronze | 48WAVEPLAIN
| 48WAVEFLANGE | 47.25"L x 3.31"W
| Stainless Steel, Oil-Rubbed
Bronze | 56WAVEPLAIN
| 56WAVEFLANGE | 55.12"L x 3.31"W
| Stainless Steel, Oil-Rubbed
Bronze |

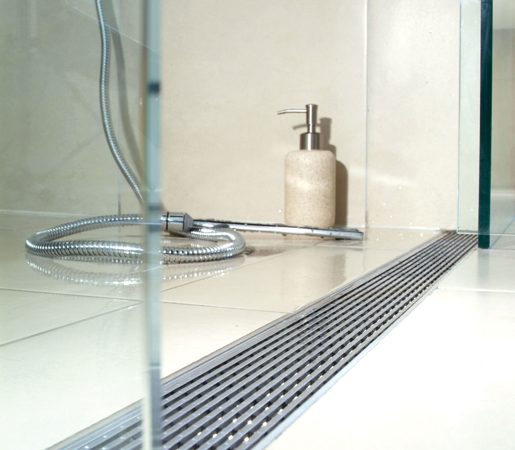

LINEAR WEDGE - Linear Drain Grate with Channel
| Model
No.
| Flange Edge
| Dimensions
| Finishes
Available
| 28WEDGEPLAIN
| 28WEDGEFLANGE | 27.55"L x 3.31"W
| Stainless
Steel
| 32WEDGEPLAIN
| 32WEDGEFLANGE | 31.50"L x
3.31"W
| Stainless
Steel | 36WEDGEPLAIN
| 36WEDGEFLANGE | 35.43"L x
3.31"W
| Stainless
Steel | 40WEDGEPLAIN
| 40WEDGEFLANGE | 39.37"L x
3.31"W
| Stainless
Steel | 48WEDGEPLAIN
| 48WEDGEFLANGE | 47.25"L x 3.31"W
| Stainless Steel | 56WEDGEPLAIN
| 56WEDGEFLANGE | 55.12"L x 3.31"W
| Stainless
Steel |

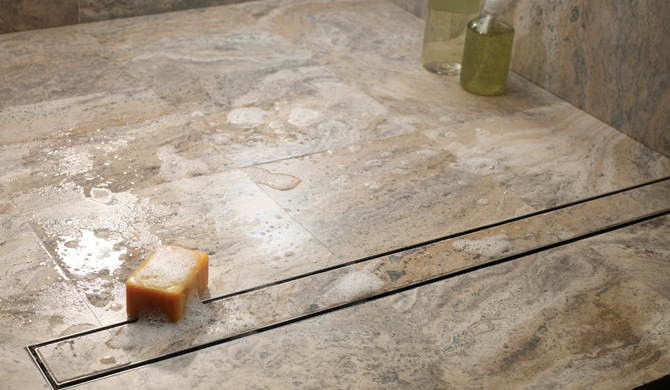

TILE - Linear Drain Grate with
Channel
| Model
No.
| Flange Edge
| Dimensions
| Finishes
Available
| 28TILEPLAIN
| 28TILEFLANGE | 27.55"L x 3.31"W
| Stainless Steel,
Oil-Rubbed Bronze
| 32TILEPLAIN
| 32TILEFLANGE | 31.50"L x 3.31"W
| Stainless Steel,
Oil-Rubbed Bronze | 36TILEPLAIN
| 36TILEFLANGE | 35.43"L x
3.31"W
| Stainless Steel, Oil-Rubbed
Bronze | 40TILEPLAIN
| 40TILEFLANGE | 39.37"L x
3.31"W
| Stainless Steel, Oil-Rubbed
Bronze | 48TILEPLAIN
| 48TILEFLANGE | 47.25"L x 3.31"W
| Stainless Steel, Oil-Rubbed
Bronze | 56TILEPLAIN
| 56TILEFLANGE | 55.12"L x 3.31"W
| Stainless Steel, Oil-Rubbed
Bronze |
Drain Accessories
|
